Medal Boxes & Presentation Sets.

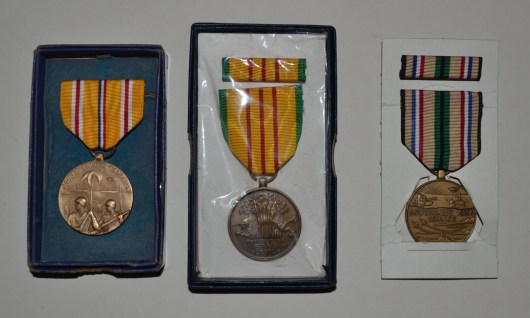

Left: Post WW2 Asiatic Pacific Service with Government contract Number and Maker details.

Centre: Vietnam service 1960 – 1970 again with contract number etc. Right: Southwest Asia, 1990’s issue with contract details.

A selection of WW2 & post war issued medal boxes from 3 different manufacturers.

These boxes show the stock number and manufacturers details plus the description of the medal enclosed. US mint issued medal boxes have reference to the service the medal is intended for e.g. US Coast Guard, Navy or Marine Corp with a description of the box contents and the stock or issue number. An example being Req No CG-3149A. (American Theatre Campaign Medal US Coast Guard). Note the gummed labels on the end of the boxes which were replaced in the 1960’s by printing the details directly on the box. Bar codes were introduced circa middle 1980’s with boxes then becoming one piece construction with open end flaps by the 1990’s. The medals would be made under contract and supplied in a cardboard box and dependent on how the medals were to be awarded to the recipient would have been put into a presentation box along with a ribbon and lapel pin. If the medals were presented in the field, then there’s every possibility this could have been straight from the cardboard box but there is film of 101st Paratroopers being presented with Silver Stars in their presentation boxes at a ceremony in Carentan, Normandy, 1944.

Early decorations were issued in colour coded hinged cardboard boxes with domed or flat lids. The Purple Heart had a flat lid and Purple coloured box and the Navy DSM was light Blue domed or flat. Other medals were as follows:

Navy & Marine Corp Medal, Red with Flat lid.

Silver Star, Maroon with Flat lid.

Air Medal, Green with flat lid.

Navy Cross, Navy Blue with domed or flat lid.

Navy DFC, Grey-Blue with domed or flat lid.

These boxes were unnamed and are extremely rare and expensive to buy. There is also an unnamed short version of the coffin box which were issued with the earlier decorations.

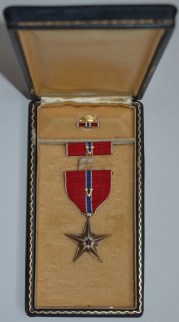

WW2 issued box. Sometimes known as the Coffin type, these would also contain the ribbon and lapel badge. Most common for these were the Distinguished Flying Cross, the Bronze Star, the Silver Star and the Purple Heart. Medals issued in these types of boxes can be of a higher price especially if they are named or have provenance. This one is for the Bronze Star with V for Valor (awarded for distinguished actions in combat), Service Ribbon and Button Hole Badge. The Bronze Star has been issued in a presentation format with a “Coffin Box” up to Vietnam. The medals being a later issue manufacture DSA code 100-69-C-1499 contract No 8455-269-5749 manufacture date 1969. This could be due to the supplier’s stock levels having coffin boxes available to issue with the medal, ribbon and lapel pin. There are also 1944 manufactured Bronze Star’s repackaged in a cardboard box but with a bar code and DLA code 8455 00 245 3829 which would date this repackage from 1977 to 1994.

Purple Heart (Unnamed or numbered) in its original box with ribbon and lapel pin. Also with this medal came a certificate from Robert P Patterson, who was Secretary of War September 1945 to July 1947 which would make this a WW2 post war issued decoration.

(Left) Plastic presentation box with USAF Combat Readiness Medal, Ribbon and Lapel Pin. This award was originally senior to the Air Force Commendation Medal (Right) circa 1964 to 1967 when the award criteria was revised and the Combat Readiness Medal was designated as a service medal and is therefore rarely seen in a presentation box and issued without the lapel pin.

(Combat Readiness Medal was made by Williams and Anderson contract No 8455-890-2158. DSA-100-189 with medal, ribbon and lapel pin in plastic case. Circa 1965).

Left: Leather bound box. Inscription: United States of America.

Centre: Leather presentation box without indent to accommodate larger medals such as the Legion of Merit (Legionnaire) with service ribbon.

Right: Army Commendation Medal with service ribbon, Lapel pin and bronze oak leaf indicating a second award in presentation box with indent for smaller medals.

These type of presentation boxes are still issued along with the more modern plastic type.

The Gallantry awards having the medal type embossed on the front cover.

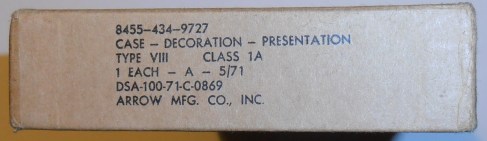

Presentation case box as made by Arrow Manufacturing, 1971. Case has different fixing points to accommodate medals and ribbons with either pin or clutch back mountings.

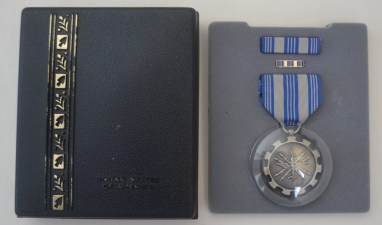

Modern day issue Air Force Achievement Medal with ribbon and lapel badge.

Some service medals are also issued in brown envelope packets such as the Navy Expert Rifleman Qualification Badge as shown above. Although awarded as a badge they are worn as a medal.

Note: DSA number is for year 1973 but date is December 1972?

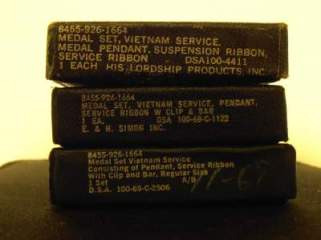

Vietnam Service Medals in their original issue boxes. Manufacturers are His Lordship Products, E&H Simon and Williams & Anderson.

With reference to the box numbers, all 3 have the Federal Stock Number 8455-926-1664 and a Defense Supply Agency (DSA) number which are different. The top medal manufactured by Lordship Industries has a DSA 100-4411 with the 100 code for the Defense personnel support center followed by the contract number 4411.

The E.H.Simon box (middle) DSA 100-68-C-1122.

100 = the code for the Defense personnel support center.

68 = fiscal year of contract 1968.

C = Contract.

1122 = Contract number.

The Williams and Anderson box underneath has DSA 100-69-C-2506.

100 = the code for the Defense personnel support center.

69 = fiscal year of contract 1969.

C = Contract.

2506 = Contract number.

Federal Stock Numbers (FSN) first appear around the mid Fifties till 1974 when they were changed from 11 digits to 13. 00 being added at digits 5 & 6. This is the 2-digit country of origin code followed by the 7 digit item identification code. 00 & 01 are for the United States whereas 99 the United Kingdom. FSN also changed in 1974 to the National Stock Number (NSN) also referred to as the Nato Stock Number.

There is also a difference in the style of box used and the inner card medal mount. This numbering system was used from circa mid to late 1960’s to 1977 when the DSA changed to the DLA, Defense Logistics Agency but kept the same numbering system. The specification on a military contract will specify a certain brooch. A variance to the contract can be applied for if the manufacturer has other types of suspender brooch available due to old stock. Local suppliers of medals will have old stock to sell along with new which may have been in storage for some period of time. These suppliers may also order in stock items from other suppliers and make up a medal, ribbon and lapel badge boxed presentation set. The medal could be made by Graco Industries (G27), the Ribbon by Vanguard (V21) and these would be issued to order with any parts older or newer that were available.

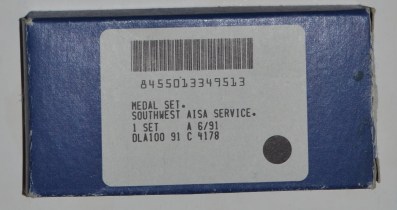

Southwest Asia Service Medal (LIGI) with DLA code 100 91 C 4178 and acceptance date for June 1991. (Note the spelling mistake “AISA” instead of ASIA).

To summarise, from the mid sixties the prefix of DSA was used followed by a 1 and a suffix of E6Y (Y=year).

From 1965 DSA-1with no date suffix.

1966 DSA100 with no date suffix.

1967 to 1977 DSA-100-(Y)-C-Contract number e.g. DSA 100-69-C-2506.

After 1977 DSA changed to DLA Defense Logistics Agency but kept same numbering system.

From 1994 to present day DLA has changed to SLO, System Progam Office.

Although not all manufacturers used the DSA numbers, some used them at least from 1963. Volupte Manufactured the Armed Forces Expeditionary DSA-1-2446-63-8 October 1963.

Williams & Anderson the USAF Combat Readiness Medal DSA-100-189 March 1966.

HLP the Air Medal DSA 100-67-C-4731 August 1967.

Whereas the Defence Medal has no DSA number on a box dated April 1968 with some of the above still using paper labels and others printing the details directly onto the box lid. This would indicate that there is some crossover in manufacturing and issuing methods when using the DSA number and box labelling. Prior to this following WW2 medal boxes were paper labelled with the stock number details, medal detail and manufacturer although some were not manufacturer named and were marked U.S. mint and were marked for the specific branch of service.

The following are authorized components of the Air Medal and the applicable specifications for each:

• Decoration (regular size): MIL-D-3943/23. NSN for decoration set is 8455-00-269-5747. For replacement medal NSN 8455-00-246-3837.
• Decoration (miniature size): MIL-D-3943/23. NSN 8455-00-996-5002.
• Ribbon: MIL-R-11589/7. NSN 8455-00-252-9963.
• Lapel Button: MIL-L-11484/17. NSN 8455-00-257-4308.

List of Federal Stock Numbers and Manufacturers.

Federal Stock No	DSA/DLA/SPO	Medal	Issue Date	Maker
71-M-945		WW2 Victory	6/14/46	J R Wood
71-M-945		WW2 Victory	6/21/46	D L Auld Co Ohio
8445-246-3794		WW2 Campaign		US Mint
Req No CG-3149A		WW2 Campaign		US Mint
71-M-912-75		WW2 Campaign		Heckethorn
8445-269-5747	100-67-C-473	Air Medal	Aug-67	His Lordship Products
8445-246-3837	100-67-C-1114	Air Medal	Dec-66	His Lordship Products
8455-890-2158	100-189	USAF Combat Readiness	Mar-66	Williams & Anderson
73-M-913		Defense Medal	Aug-46	Medallic Art Co
8455 0028 13214	100-02-D-5055-0002	Defense Medal	Feb-03
8455-0028-13214	100-92-C-4111	Defense Medal	Oct-92
8455-211-3214		Defense Medal	Apr-68
8455 281 3214		Defense Medal	Jul-67
8455 281 3215	01 2652-E-57	Defense Medal	Sep-57	Krew Inc
8455 281 3215		Defense Medal		General Products
8455-082-5638	1-2446-63-8	Armed Forces Expeditionary	Oct-63	Volupte
8455-577-5878	100-73-C-0129	Navy Expert Rifleman Badge	Dec-72
8455-926-1664	100-69-C-1522	Vietnam Service	May-69	Volupte
8455-926-1664	100-68-C-1122	Vietnam Service		E H Simon
8455-926-1664	100-4411	Vietnam Service		His Lordship Products
8455-926-1664	100-69-C-2506	Vietnam Service	Nov-69	Williams & Anderson
8455-926-1664	100-69-C-2506	Vietnam Service	Dec-69	Williams & Anderson
8455-926-1664	100-69-C-2506	Vietnam Service	Jan-70	Williams & Anderson
8455-00-269-5761	100-90-F-EE76	Army Good Conduct	Feb-91
8455-00-269-5761	100-85-F-EF19	Army Good Conduct	01/07/1965 /85?	LIGI
71-D-370		Army Good Conduct	9/20/44	Robbins Co
71-D-370		Army Good Conduct	05/11/1944	Silverman Brothers
71-D-370	PQD 112 D	Army Good Conduct	10/06/1944	Medallic Art Co
71-M-919-575		WW2 Asiatic Pacific Campaign		Medallic Art Co
8455-965-4706	1-4772-65-E	Air Force Cross	Nov-64	His Lordship Products
8445-082-5528		Airforce Good Conduct	Mar-63
8455-996-5002	100-69-C-2213	Airmedal miniature	Sep-69	His Lordship Products
8455-0133-49513	100-91-C-4718	Southwest Asia Service	Jun-91	Williams & Anderson
71-D-945		Purple Heart	03/17/33	Metal Arts Co
71-D-390		Purple Heart	07/01/1942	Rex Products
8455-269-5757		Purple Heart
8455-002695757	100-01-05065-0002	Purple Heart	01/05/2003
8455-434-9727	100-71-C-0869	Presentation Case Type VIII	May-71	Arrow MFG Co
8455-269-5771	OI-7902-E-55	Korean Service Medal	Nov-55	Medallic Art Co NY
71-M-916-150		WW2 Army of Occupation		D L Auld Co Ohio
71-M-916-150		WW2 Army of Occupation		General Products
71-M-927-210		Medal for Humane Action		Daniel Smilo & Son
8455-269-5749	100-69-C-1499	Bronze Star Decoration Set	A6/69
71-D-357	PQD No 112D	Bronze Star	Dec-44	Swank Inc
		WW2 Merchant Marine Victory	1947?	US Mint
